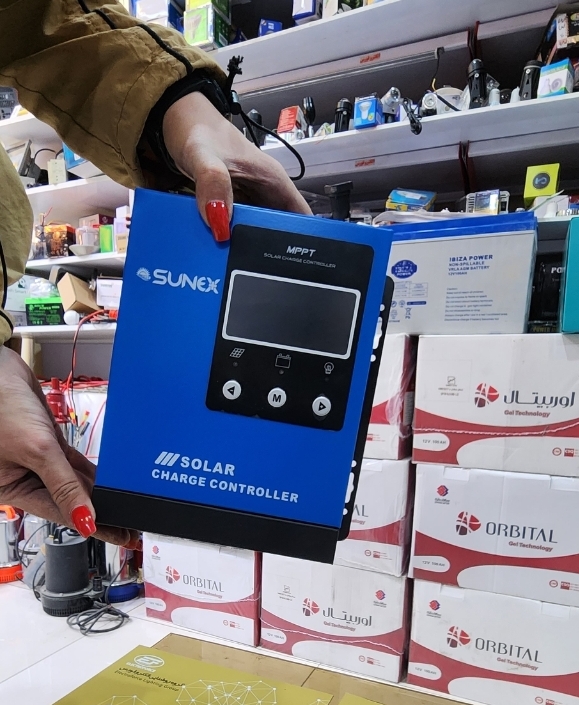

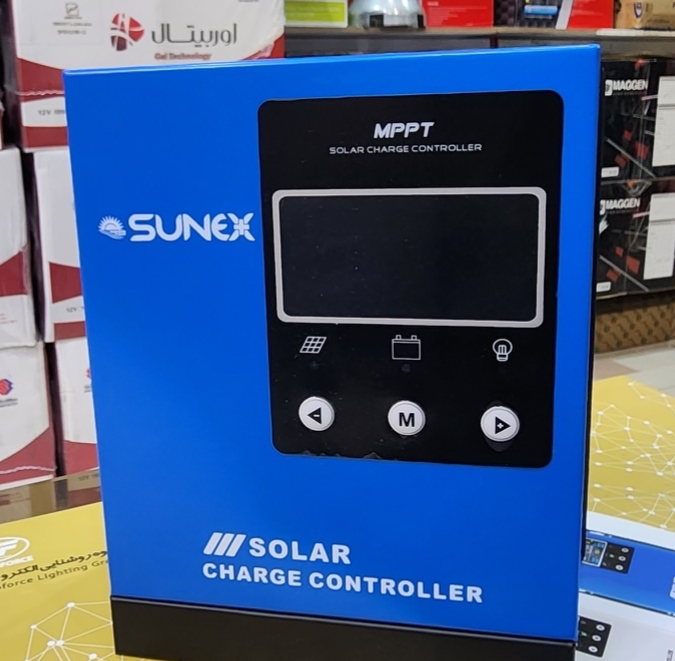

کنترل شارژر سانکس 40A MPPT
کنترل شارژر ام پی پی تی چهل آمپر سانکس
۱۲ ولت ،۲۴ ولت و ۴۸ ولت
قابلیت اتصال به کامپیوتر و گوشی
Product features:
1.12V/24V 48V system voltage automatically recognized.
2.Maximum Power Point Tracking technology,the tracking efficiency can be high as 99%.
3. With temperature compensation employed, charging parameters can be automatically adjusted.

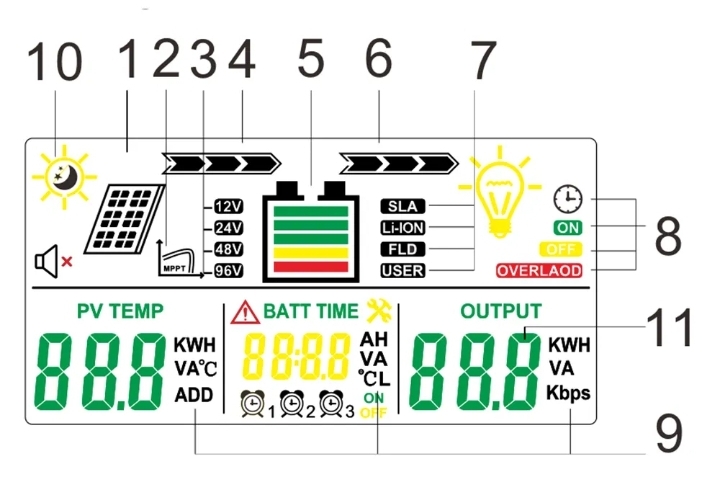

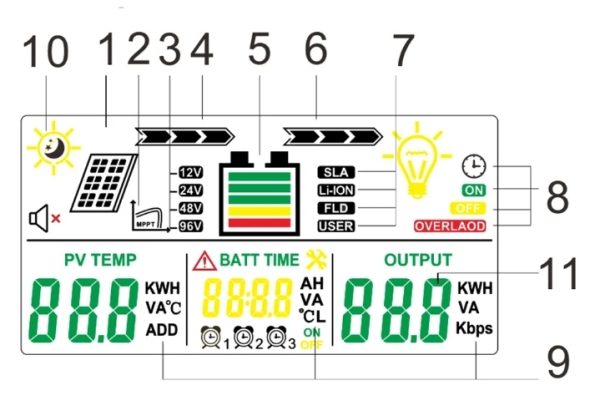

4. LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify system faults.
5.The controller is equipped with an LCD screen with which users can not only check device operating data and statuses, but also modify controller parameters.
6.The controller supports standard Modbus protocol, fulfilling the communication needs of various occasions.
7. Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the battery’s service life
|
Model
|
MPK30
|
MPK40
|
MPK50
|
MPK60
|
|
Input
|
||||
|
Max.PV open circuit voltage
|
150V (at the lowest temperature);138V(at a standard temperature of 25℃)
|
|||
|
Minimum PV voltage
|
20V/40V/60V/80V
|
|||
|
Rated charge current
|
30A
|
40A
|
50A
|
60A
|
|
Output
|
||||
|
System voltage
|
12V/24V/36V/48V
|
|||
|
Rated discharge current
|
15A
|
20A
|
25A
|
30A
|
|
Float charge
|
13.8V/27.6V/41.4V/55.2V
|
|||
|
Absorption charge
|
14.4V/28.8V/43.2V/57.6V
|
|||
|
Equalization
|
14.6V/29.2V/43.8V/58.4V
|
|||
|
Load disconnection(LVD)
|
10.8V/21.6V/32.4V/43.2V
|
|||
|
Load reconnection(LVR)
|
12.6V/25.2V/37.8V/50.4V
|
|||
|
Load control mode
|
Normal,light control,light and time control,reverse light control
|
|||
|
Light control point voltage
|
5V/10V/15V/20V
|
|||
|
Battery type
|
GEL,SLD,FLD,USR(default),lithium battery customization 3 series 3.7V,4 series 3.7V
|
|||
|
Other
|
||||
|
Human interface
|
Color LCD with backlight,3 buttons
|
|||
|
Cooling mode
|

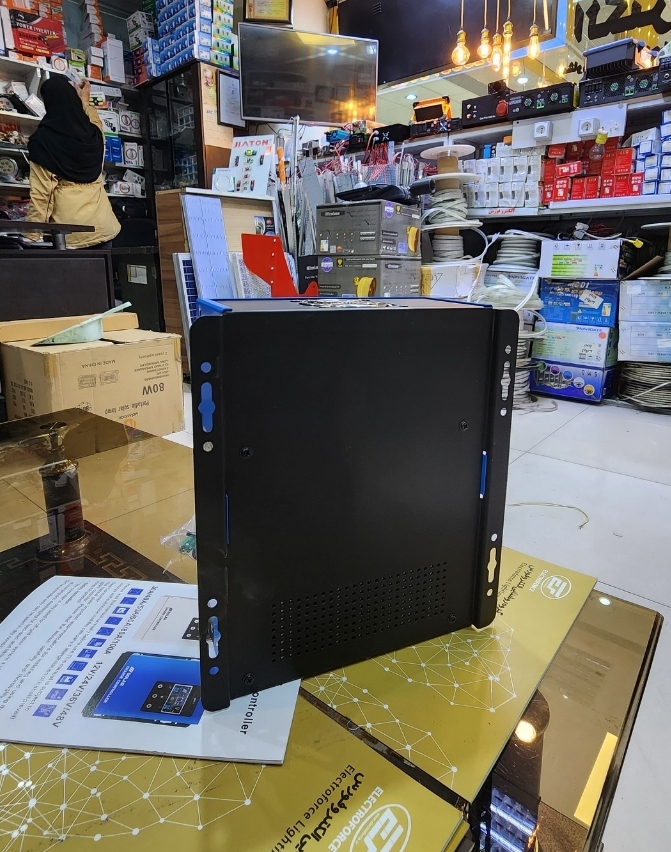

Aluminum alloy heat sink and cooling fan
|
|||
|
Wiring
|
High current copper terminal
|
|||
|
Communication
|
RS485,RJ45 port
|
|||
|
Working temperature range
|
-20℃～+55℃
|
|||
|
Storage temperature range
|
-30℃～+80℃
|
|||
|
Size
|
220*200*83mm
|
265*200*88mm
|
||
|
Weight
|
2.8kg
|
3.5kg
|
||
